Roller Xovxwm Tshuab
Yam khoom No.: ACEY-HR300
Order (Moq): 1set
Ua raws li: CE Certified
Pob: Plywood Case
Khoom Keeb Kwm: Tuam Tshoj
Warranty: Ib xyoos lav nrog kev txhawb nqa lub neej
Kev Them Nyiaj: T / T, Western Union, Paypal, Ali Trade Assurance
Order (Moq): 1set
Ua raws li: CE Certified
Pob: Plywood Case
Khoom Keeb Kwm: Tuam Tshoj
Warranty: Ib xyoos lav nrog kev txhawb nqa lub neej
Kev Them Nyiaj: T / T, Western Union, Paypal, Ali Trade Assurance
Xa kev nug
Khoom Taw qhia

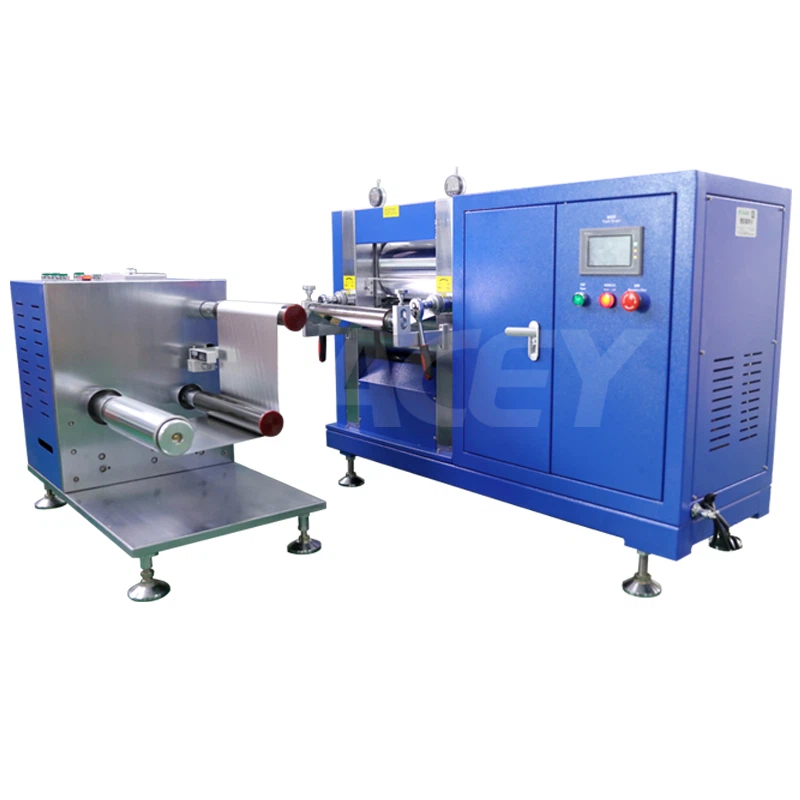

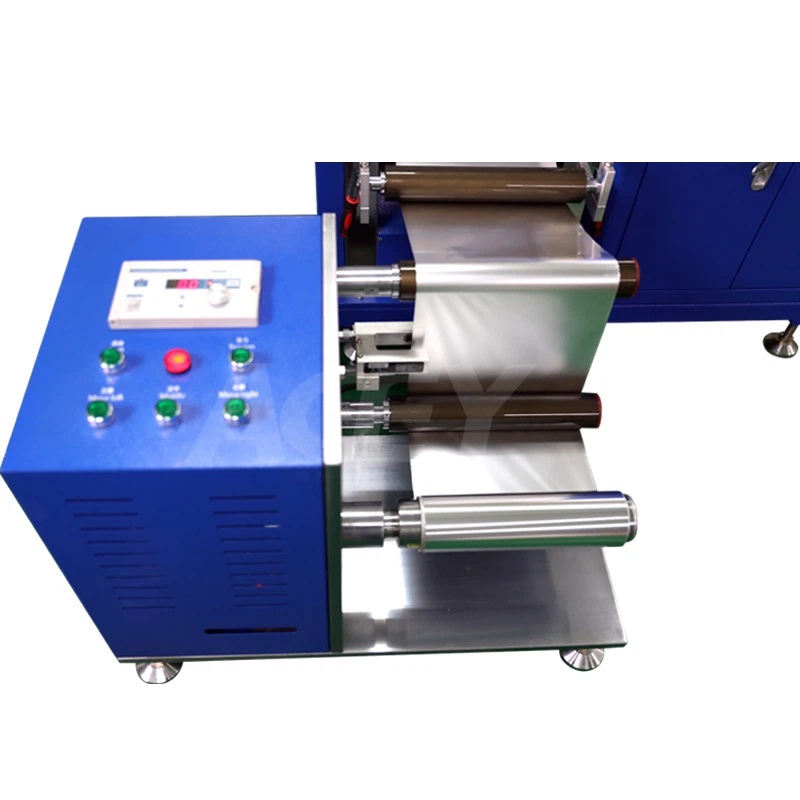

Roller Xovxwm Tshuab rau Roj Teeb Electrode Calendering
Product Description
Cov Menyuam Xovxwm Tshuab rau Roj Teeb Electrode Calendering yog lub hom phiaj ntawm high-precision dov ntawm zoo thiab tsis zoo daim hlau hauv kev lag luam roj teeb. Cov khoom siv tau zoo kab rov tav thiab ntsug dov uniformity, thiab cov tsos ntawm cov khoom dov yog qhov zoo. Cov khoom siv yog muab los ntawm hydraulic system los muab siab rau yob yob. Nws yog qhov tsim nyog rau qhov twg muaj qhov yuav tsum tau ua ntau dua rau qhov sib xws ntawm kev sib tw ntawm dov quab yuam thiab dov qhov sib txawv.
Nta
- Integral gantry ncej, CNC precision machining los xyuas kom meej siab precision thiab siab stability;
- Cov yob yog ua los ntawm cov khoom siv txias-kuav los tiag chromium-molybdenum, thiab qhov saum npoo yog chromium-plated thiab cryogenically kho los ntawm kev kho cua sov, nrog rau sab hauv thiab sab nraud hardness thiab zoo hnav tsis kam;
- Lub tshuab hydraulic tuaj ntawm Tebchaws Meskas tuaj yeem tswj tau lub siab dov;
- Patent tsim hydraulic tshuav dov mechanism, ruaj khov tuav, zoo kab rov tav thiab ntsug dov uniformity;
- Slanted thaiv hom yob qhov sib txawv hloov khoom siv, tso saib hloov kho;
- Nto hardness HRC65 ~ 68, sab hauv hardness HRC 60-62, roughness Ra Tsawg dua los yog sib npaug rau 0.4, round runout zoo dua ± 2μm
- Ib qho kev txo qis ntawm lithium electrode daim ntawv yog 20% ~ 30%, yog tias nws yog nyias, nws yuav tsum tau dov ntau zaus (5μm / sijhawm)
Specification
| Khoom npe: | Hydraulic roller tshuab | ||||||
| Qauv No.: | ACEY-HR300 | ||||||
| Rolling quab yuam: | Max 25 t. | ||||||
| Mechanical ceev | Qhov siab tshaj 6m / min | ||||||
| Txoj kab uas hla: | Φ200 hli; Khoom siv: 9Cr3Mo | ||||||
| Roller nto dav | 330 hli | ||||||
| Nias down hom: | hydraulic | ||||||
| Rolling precision: | ±1.5μm | ||||||
| Rolling mill qhib: | 2 hli | ||||||
| Reducer thiab sub-gearbox: | ua ke | ||||||
| Rolling Mill Tsav: | AC hloov pauv zaus lub cev muaj zog | ||||||
| Siv ib puag ncig: | pom zoo ib puag ncig kub 25 ± 3 degree, av noo 30 ~ 90RH, tsis muaj kev vibration thiab electromagnetic cuam tshuam | ||||||
| Zuag qhia tag nrho installation qhov ntev: | ntev 1400mm dav 500mmX qhov siab 1300mm | ||||||
| Voltage: | 220V 2 kWm | ||||||
| compressed cua | 0 5-0.8MPa | ||||||
| Qhov hnyav: | txog 600KG | ||||||
