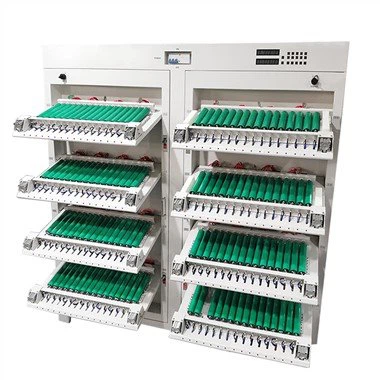

Cov khoom siv roj teeb thiab Cell Test

Khoom siv

Qauv No.:

ACEY-BCT503-512

Tus naj npawb ntawm cov khoom siv channel

Tag nrho 512 channel ntawm tag nrho lub tshuab

Sab nrauv qhov ntev

Dav 1620mm × qhov tob 550mm × qhov siab 1840mm

Chassis Xim

Standard dawb (customizable)

Fixture form

Quick clamp plaub-xaim clamp (taw lub taub hau, lub taub hau tiaj tus, ob daim) xaiv tau, nruab nrog lub tais roj teeb

Fixture spacing

35mm ib

Txhawb roj teeb specifications

18650, 21700, 26650, 32650, 32700

Kev ua haujlwm fais fab

Peb-theem 5-hlau AC380V 10 feem pua, 50HZ

Kev siv hluav taws xob ua haujlwm

Tsawg dua lossis sib npaug li 14KW

Ua haujlwm ib puag ncig

Kub -10 ~ 40 degree, txheeb ze av noo tsawg dua lossis sib npaug li 80 feem pua

Thaum tshav kub kub dissipation hom

Natural pa kom tsawg, nce pa tawm

Channel parameters

Voltage ntsuas ntau yam

DC 0 ~ 5V

Roj teeb voltage ntau

Them DC 0 ~ 4.5V; Tawm tswv yim DC 4.5 ~ 2V

Tsis tu ncua voltage ntau yam

DC 2.5 ~ 4.5V

Voltage raug

± (1 ‰ nyeem ntxiv 1 ‰ puv)

Voltage daws teeb meem

Kev daws teeb meem 1mV

Voltage stability

Tsawg dua los yog sib npaug rau 1 ‰

Tam sim no ntau yam

Them DC 30mA ~ 3A; Tawm tawm DC 30mA ~ 3A

Qhov tseeb tam sim no

± (1 ‰ nyeem ntxiv 1 ‰ puv)

Kev daws teeb meem tam sim no

Kev daws teeb meem 1mA

Kev nyeem ntawv ruaj khov tam sim no

Tsawg dua los yog sib npaug rau 1 ‰

Software muaj nuj nqi

Tswj hom

Cov cuab yeej siv computer tswj ua haujlwm, tag nrho cov txee tswj

Kev sib txuas lus hom

Serial chaw nres nkoj, baud tus nqi 57600

Txheej txheem txheej txheem

Txog 32 cov kauj ruam ua haujlwm thiab 256 lub voj voog tuaj yeem teeb tsa, nrog cov voj voog zes

Kev them nyiaj hom

Tsis tu ncua tam sim no, tsis tu ncua voltage, tsis tu ncua tam sim no thiab tsis tu ncua voltage

Charge cut-off condition

Voltage, tam sim no, lub sijhawm, muaj peev xwm

Tso tawm hom

Tam sim no tsis tu ncua

Discharge cut-off condition

Voltage, lub sijhawm, muaj peev xwm

Kev tiv thaiv muaj nuj nqi

Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity tiv thaiv, kev tiv thaiv hluav taws xob, cov ntaub ntawv breakpoint rov qab

Sijhawm Range

0~30000 feeb/kauj ruam, chav tsev lub sij hawm yog min

Lub sij hawm raug

Tsawg dua lossis sib npaug ± 1 ‰

Kev kuaj xyuas lub voj voog

Tsawg dua los yog sib npaug li 8s

Yam tsawg kawg nkaus sau cov ntaub ntawv zaus

Tsawg dua los yog sib npaug li 8s

Roj teeb sorting

Raws li (muaj peev xwm, lub sij hawm, qhib Circuit Court voltage, paug platform, thiab lwm yam)

Muaj peev xwm sau cov voltage, tam sim no, lub sij hawm, muaj peev xwm thiab lwm yam ntaub ntawv, cia li xam qhov tam sim no tus nqi them piv, muaj peev xwm poob, paug efficiency, nruab nrab voltage, nruab nrab voltage thiab lwm yam ntaub ntawv, muab cov ntaub ntawv graph thiab daim duab voj voog;

Kev ua cov ntaub ntawv

Tsim cov ntawv nyeem, EXCEL, WORD, lossis MDB cov ntaub ntawv hom ntaub ntawv
