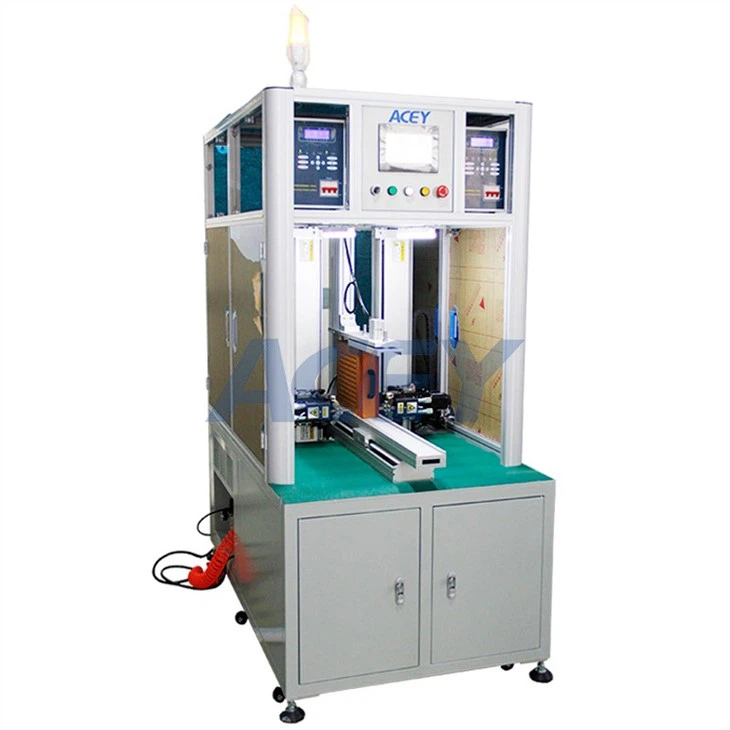

Spot Welding Machine for 18650 Battery
Model No.: ACEY-D300A (pneumatic version)
Battery Types: 14500/18650/21700/26650/32650/32700/32140/33140
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Double Sided Lithium Ion Battery Automatic Spot Welding Machine For 18650 Battery
Products Description
Double sided automatic spot welder is suitable for battery pack welding and assembly in the factory for 14500, 18650, 26650, 21700, 32650, 32700 etc multi parallel multi series combination battery packs.
Features
* Support breakpoint start, auto start and manual start.
* Cold solder joint and seal alarm.
* Simple program, support matrix, array and point program, can store 100 groups of parameters.
* Weld pin wear alarm.
* Built-in welding current monitor for real-time display of welding current.
* Design for NB, power tools, gardening tools, high power, energy storage batteries, electric car battery packs, etc.
* Can be matched with lithium battery pack production line.
* Can store dozens of different battery pack products and switch products without resetting parameters.
Specification
|
Model No.: |
ACEY-D300A (pneumatic version) |
|
Power |
4000W |
|
Input power supply |
single-phase AC 380V/50Hz |
|
Y-axis travel |
500mm (customizable) |
|
X-axis travel |
350mm (customizable) |
|
Max spot welding speed |
0.5s/ spot (1 hour：about 3,600 pcs 18650 cells) |
|
Repeat positioning accuracy |
±0.02mm |
|
Motor drive speed |
1000mm/S |
|
Capable file group storage |
100 groups |
|
Air Source |
0.4-0.6 Mpa |
|
Max load electric cores |
X direction: 26; Y direction: 18 |
|
Driving mode |
stepper servo motor |
|
Max bearing weight of Y-axis |
50KG |
|
Machine weight |
350KG |
|
Dimensions |
L1020mm*W910mm*H1770mm |

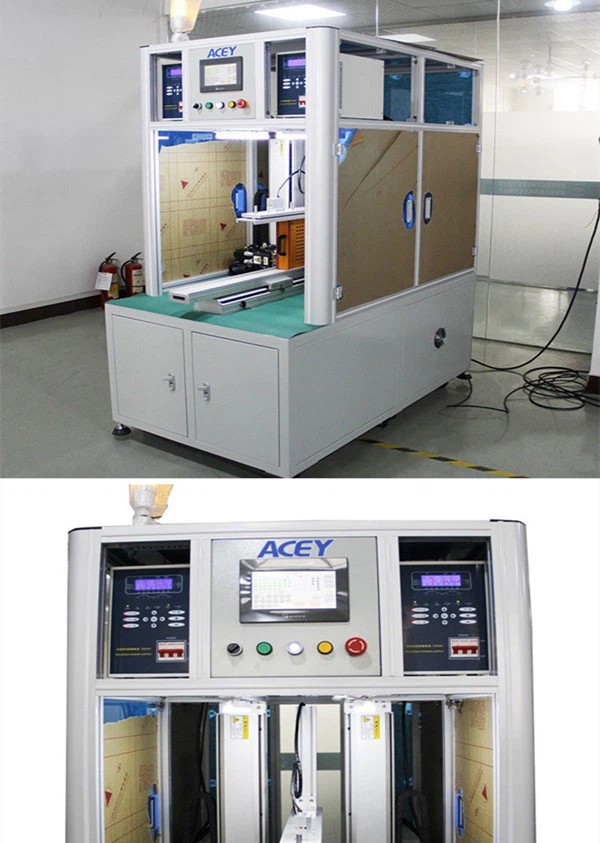

Product Details
