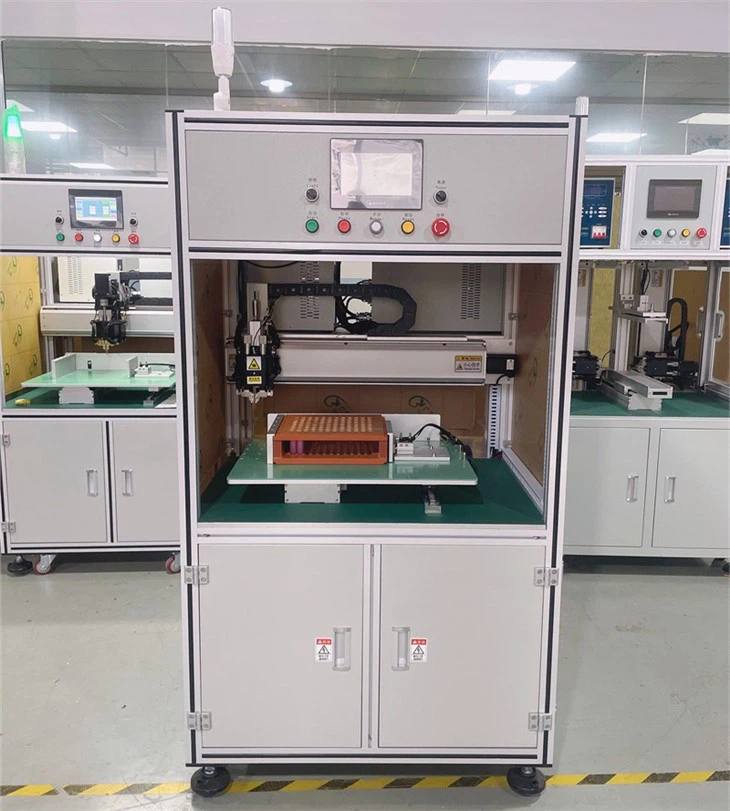

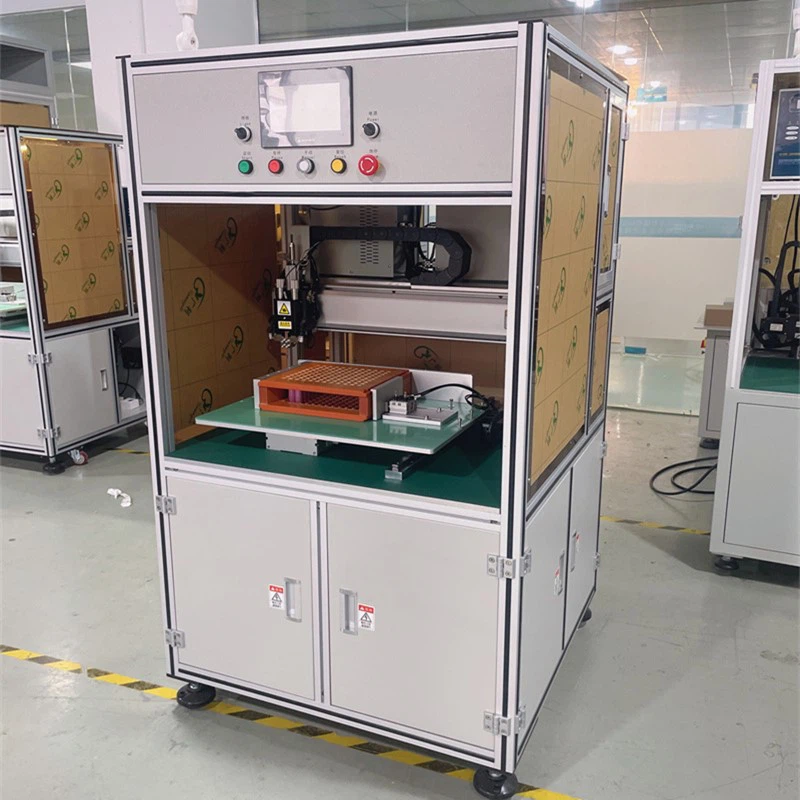

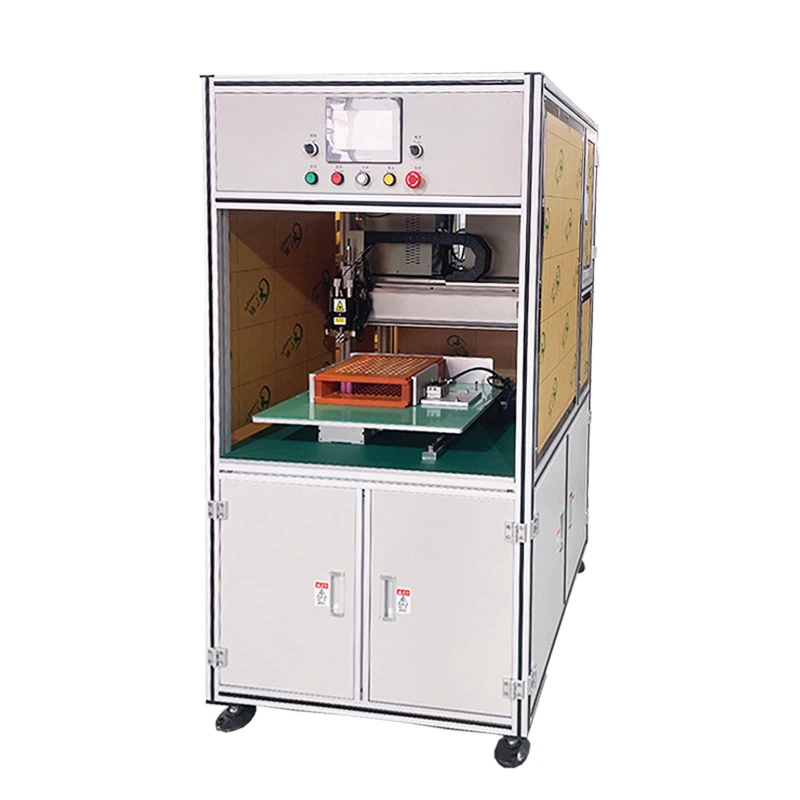

Lithium Ion roj teeb Vuam Tshuab
Qauv No.: ACEY-S200B (Electric)
Roj teeb hom: 14500/18650/21700/26650/32650/32700/32140/33140
Warranty: 1 xyoo
MOQ: 1 set
Pob: Plywood Case
Tib Sided Tsis Siv Neeg Spot Welder Rau Lithium Ion Roj Teeb
Khoom Description
Lithium ion roj teeb vuam tshuab tuaj yeem siv rau 18650, 21700, 26650, 32650, 32700 Roj Teeb Pob Vuam Thiab Sib Tsoo, dhau li ntawd, lub roj teeb pob vuam tshuab tau dav siv hauv roj teeb, hluav taws xob, khoom siv, yas, tshuab thiab lwm yam.
Nta
1. Lub hwj chim: 2KW, AC 220V, 50HZ
2. Cua siab: 0 4-0.6Mpa
3. Applied range: Series thiab parallel ua ke ntawm 18650, 21700, 26650, 32650, 32700and square batteries (los yog zoo sib xws), kom ua tiav automated ib leeg-sided chaw vuam.
4. Haum nickel dav: unlimited
5. Haum nickel thickness: 0.1mm-0.2mm
6. Siv lub roj teeb 18650 ua piv txwv, 1800-2000pcs ib teev
7. Cov nyhuv vuam: zoo vuam zoo sib xws, cov pob qij txha tsis sib xws thiab zoo nkauj
8. Tswj kev tivthaiv: 7.5-inch kov npo, 3-axis siab ceev PLC programmer, 2-axis 750W servo thiab stepper motor.
9. Siv txoj kev sib sau nickel strip kom txo cov khib nyiab.
10. Cov khoom siv debugging yog qhov yooj yim, yooj yim kawm thiab nkag siab yooj yim, hloov tus qauv sai
11. Qhov chaw vuam siv tau zoo: X-axis 400mm, Y-axis 500mm (customizable)
12. Vuam taub hau fais fab: Hluav taws xob

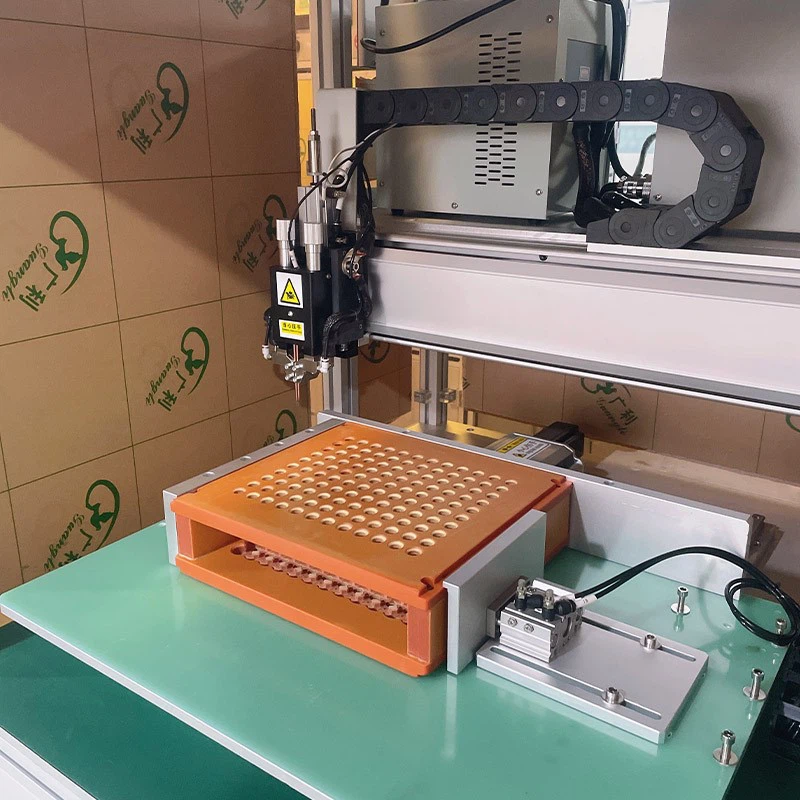

13. Tiav lawm roj teeb fixture pwm: 1 teeb rwb thaiv tsev hluav taws xob ntoo fixture (2 pcs)
14. Lub cuab yeej tuaj nrog lub tswb tsis raug, tshem tawm qhov ua txhaum raws li qhov hais kom ua
15. Lub cuab yeej tuaj yeem khaws 99 cov ntaub ntawv programming, yooj yim siv hauv kev tsim khoom.
Specification
|
Qauv No.: |
ACEY-S200B |
|
Max qhov chaw vuam ceev |
0.35s/point (1 teev: txog 2800 units18650 hlwb) |
|
Tsav tsav ceev |
600mm / S |
|
Max load hluav taws xob cores |
X kev taw qhia: 26; y kev: 26 |
|
Muaj peev xwm ua ntaub ntawv pab pawg cia |
100 pawg |
|
Kev khiav haujlwm |
embedded system human-tshuab interface |
|
Hom kis tau tus mob |
Taiwan precision ntsia hlau nrog cov lus qhia rail |
|
Tsav tsheb hom |
stepper servo lub cev muaj zog |
|
Rov ua dua qhov tseeb |
± 0.02mm |
|
Qhov ntev |
L: 900mm, W: 900mm, H: 1650mm |
|
Hwj chim |
2000W |
|
Tshuab hnyav |
150 KG |
|
Max bearing hnyav ntawm Y-axis |
30 KG |
|
Input fais fab mov |
Ib-theem AC 220V / 50Hz |
Khoom Paub meej
