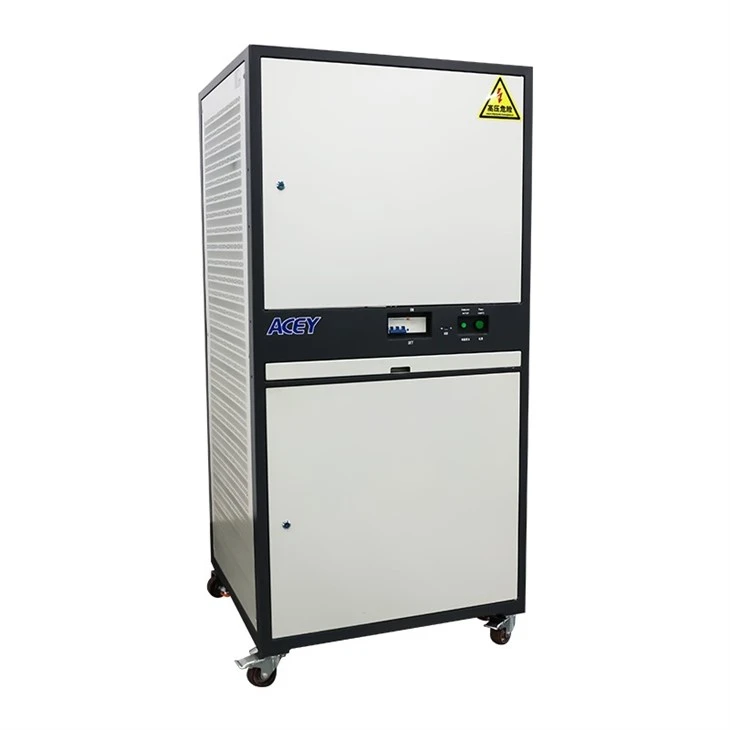

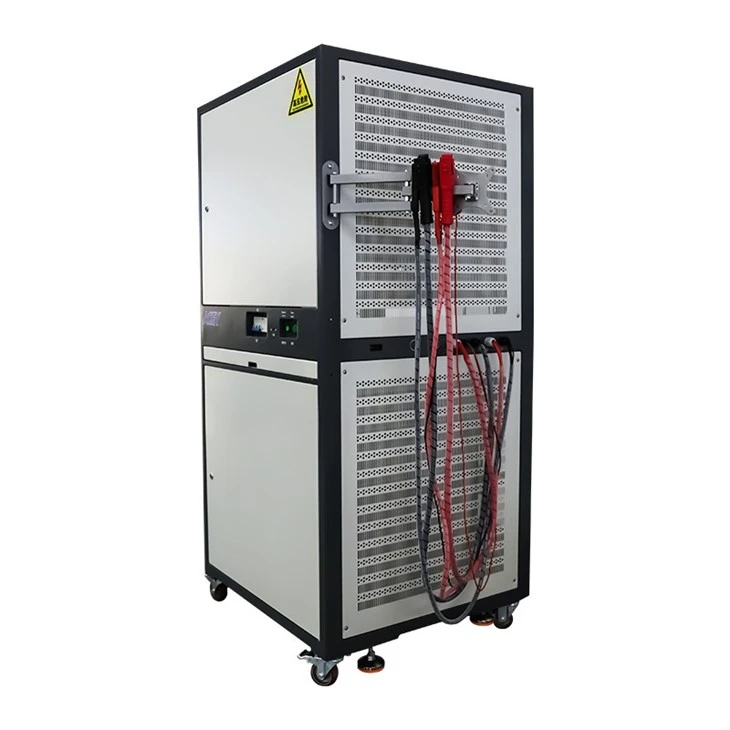

200V 150A Charge 300A Tawm Lithium roj teeb Comprehensive Tester
Qauv No.: ACEY-BIT200-150A300A
Test qhib Circuit Court voltage: 200V
Warranty: 1 xyoo
MOQ: 1 set
Pob: Plywood Case
Ua raws li: CE Certified
Kev Them Nyiaj: T / T, Western Union, PayPal, Ali Trade Assurance
200V 150A Charge 300A Tawm Lithium roj teeb Comprehensive Tester
Khoom Description
ACEY-BIT200-150A300A Battery Comprehensive Tester yog lub ntsuas kub ceev thiab meej tsim los ntsuas qhov ua tau zoo ntawm cov roj teeb ua tiav. Nws muaj peev xwm ntsuam xyuas ntau yam tsis tseem ceeb xws li qhib-circuit voltage, internal impedance, them thiab tawm peev xwm, nrog rau kev nyab xeeb nta xws li overcurrent thiab luv-circuit tiv thaiv. Qhov kev ntsuas qib siab no tuaj yeem txheeb xyuas cov roj teeb uas tsis zoo, yog li txhim kho kev tsim khoom lag luam thiab ua kom cov roj teeb lithium-ion zoo.
Cov khoom kuaj
- Voltage: Tsis muaj-load voltage thiab luv Circuit Court tiv thaiv voltage tom qab qhov kev xeem tiav, Ntau yam:0-200V
- Internal Resistance: ACIR1000hz, Ntau: 0-4000mΩ
- Kev them nyiaj overcurrent tiv thaiv tam sim no, Ntau yam:0-150A.
- Kev them nyiaj tam sim no tsis tu ncua, Ntau yam:0-150A.
- Kev saib xyuas qhov hluav taws xob tsis tu ncua, Ntau yam:0-200V
- 6-1Kev tiv thaiv overcurrent tam sim no thiab ncua sij hawm, Rang ntawm tam sim no:0-300A
- 6-2Overcurrent test mode: (1) Theem test (2) ceev test.
- Nruam tawm tam sim no, Ntau yam:0-300A
- Kev txiav txim hluav taws xob tsis tu ncua, Ntau yam:0-200V
- Lub sij hawm tiv thaiv luv luv: Tsawg dua lossis sib npaug rau 1000μ, Max luv Circuit Court tam sim no txog 5000A
- Ib leeg-cell voltage xyuas
- Kev txaus siab ntawm tus nqi thiab tawm voltage:
- Thaum lub sijhawm ua haujlwm, yog tias lub zog hluav taws xob raug txiav tawm thiab MOS raj ntawm lub rooj tsav xwm tiv thaiv raug kaw, tsis muaj qhov cuam tshuam tam sim no, thiab lub rooj tiv thaiv ntawm lub lithium roj teeb pob yuav tsis puas.
- Txhawb MES system
- Database: Lub software los nrog cov ntaub ntawv, uas tuaj yeem tsim cov rooj Excel.
- Step-by-step hom: qhov kev xeem ua ntu zus tuaj yeem hloov kho tau.
- Txhawb kev nthuav dav chassis.
Technical Parameters
- Voltage range {{0}}V daws teeb meem: 1mV Qhov tseeb 0.1%RD+0.1FS
- Internal resistance {{0}}mΩ daws teeb meem:0.001mΩ Qhov tseeb 0.1%RD+0.1FS
- Them tam sim no {{0}}A daws teeb meem: 0.001A Qhov tseeb 0.1%RD+0.1FS
- Tawm tam sim no {{0}}A , ntawm qhov hluav taws xob siab tshaj, txuas ntxiv tawm tam sim no 300A, daws teeb meem: 0.001A Qhov tseeb 0.1%RD+0.1FS
- Overcurrent ncua sij hawm: {{0}}S daws teeb meem:１mS Qhov tseeb 0.1%RD+0.1FS
- Lub sijhawm luv luv Circuit Court {{0}}μS daws teeb meem: 1μS Qhov tseeb 0.1%RD+0.1FS
- NTC ntau yam {{0}}K 0.001K
- R1 ntau yam 0-100K 0.001K
- Fais fab mov: AC 200V-240V
- Lub zog ua haujlwm siab tshaj plaws rau kev them nyiaj: 30KW (Thaum them nrog qhov siab tshaj plaws tam sim no)
- Lub zog ua haujlwm siab tshaj plaws rau kev tso tawm: 60KW (Thaum tso tawm nrog qhov siab tshaj plaws tam sim no)
- Lub zog hluav taws xob ＜15V
Khoom Paub meej
