Prismatic roj teeb sorting tshuab
Qauv No.: ACEY-PS8
Roj teeb hom: Square roj teeb
Warranty: 1 xyoo
MOQ: 1 set
Pob: Plywood Case

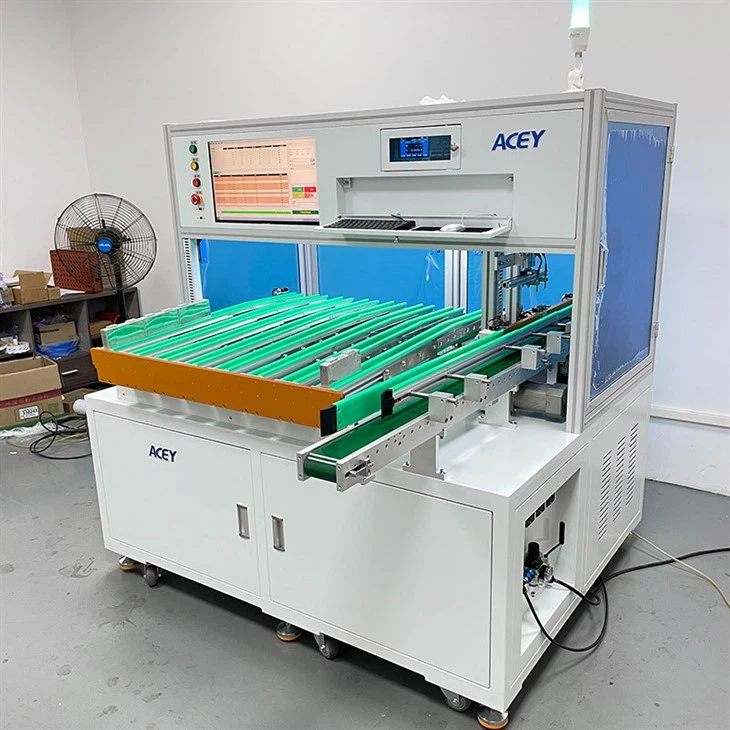

8 Channels Prismatic roj teeb sorting tshuab
Product Description
ACEY-PS8 Prismatic roj teeb cell sorting tshuab yog 8 raws tsis siv neeg sorting tshuab nrog kev ua haujlwm ntawm tsis siv neeg code scanning, tsis siv neeg kuaj, tsis siv neeg sorting ntawm sab hauv thiab voltage. Nrog high-precision internal kuj thiab voltage tsis siv neeg soj ntsuam system, cov cuab yeej raws li lub internal kuj, voltage tus nqi teev nyob rau hauv lub software kom raug xa lub roj teeb mus rau lub teev channel, lub system muaj peev xwm paub txog li 8 theem ntawm sorting. Cov cuab yeej no tuaj yeem kuaj txog 600 daim ntawm cov roj teeb hauv ib teev, thiab cov qauv tsim yog yooj yim thiab dav, kev ua haujlwm ruaj khov, kev ua haujlwm yooj yim, cov cuab yeej siv tau zoo.
Parameter
1) Fais fab mov: 220V ± 10% / 50Hz ± 10%
2) Lub zog: 2000W
3) Cua qhov chaw: 0 5-0.6Mpa
4) Nyhav: 350KG;
5) Dimension: L1800mm * W1200mm * H1600mm;
6) Kev siv ib puag ncig: Thov zam kev siv cov cuab yeej no nyob rau hauv qhov kub thiab txias, cov av noo siab, kev co lossis kev poob siab, cov hmoov hlau, vuam spatter ntau qhov chaw, xyuam xim rau kev tswj qhov kub thiab txias nyob ib ncig ntawm cov khoom siv; cov cuab yeej yuav tsum tau grounded thiab cais los ntawm cov neeg ua haujlwm grounding kab;
| Kev ua tau zoo | 10-12 ppm |
| Cov qoob loo | Ntau dua lossis sib npaug li 95% |
| Channel | 8 (7 OK, 1 NUG) |
| Siv tau roj teeb loj | L:100-170mm,W:30-70mm,H:{2}}mm |
| Kev ntsuas qhov tseeb ntawm kev tiv thaiv sab hauv | +/-0.5% rdg, Zaub daws teeb meem 0.01 mΩ |
| Voltage ntsuas qhov tseeb | +/-0.05% rdg,Display daws teeb meem 0.01 mV |
| Repeatability ntawm internal resistance detection | ＜1 mΩ (ACIR xeem txoj kev) |
| Voltage detection repeatability | 1 mV |
| Tswj System | PC Industrial Controls (Embedded Systems) |
| Kev siv fais fab input | 1 KW |
| Input Power Supply | AC220V / 50HZ |
| Compressed cua qhov chaw | Ntau dua lossis sib npaug rau 0.6Mpa |
| Zaub | 21. 5-inch Philips |
| Cov cuab yeej zoo li siv qhov loj me | L * W * H =1897 * 1595 * 1600mm |
| Qhov hnyav | 650 KG |
Nta
1) Nrog rau kev tswj hwm kev lag luam, tag nrho cov teeb meem ntawm lub roj teeb tuaj yeem taug qab thiab taug qab, tswj cov ntaub ntawv yooj yim thiab ua haujlwm yooj yim
2) Ua kom haum rau ntau hom roj teeb, yooj yim hloov hom thiab yooj yim rau kev khiav lag luam.
3) IR tester: HK3560 siab kuaj qhov tseeb thiab ceev.
Cov Khoom Paub meej
Cim npe nrov: Tuam Tshoj prismatic roj teeb sorting tshuab manufacturers, lwm tus neeg
