Lithium roj teeb pob Spot Welder

Yam khoom: Lithium Battery Pack Spot Welder
Qauv No.: ACEY-D300B (Electric version)
Roj teeb hom: 14500/18650/21700/26650/32650/32700
Warranty: 1 xyoo
MOQ: 1 set
Pob: Plywood Case

Xa kev nug

Khoom Taw qhia

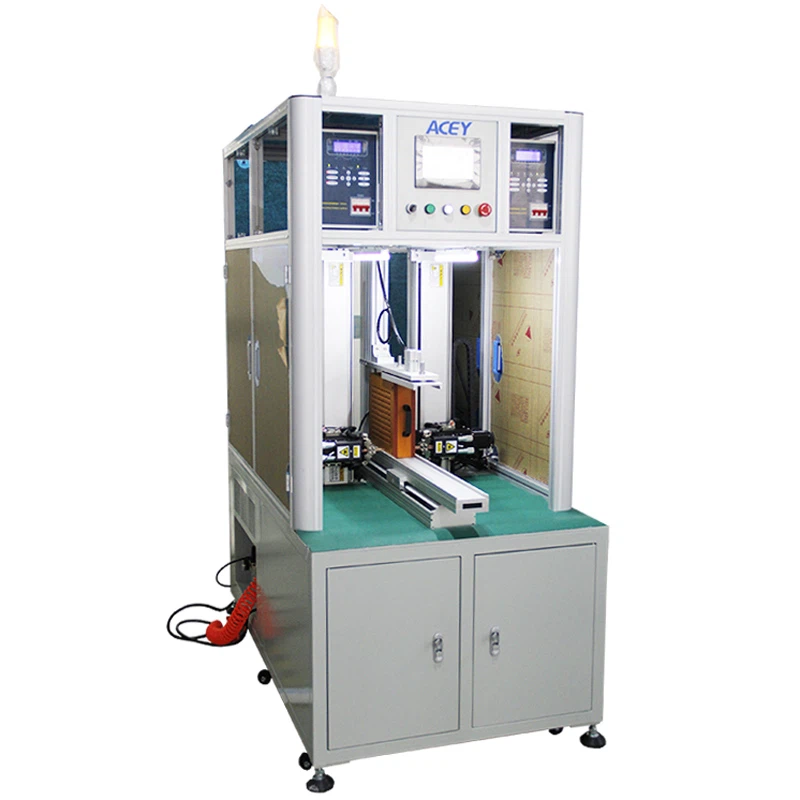

Lithium roj teeb pob Spot Welder

Khoom Description

ACEY-D300B yog haum rau roj teeb pob ob-sided qhov chaw vuam thiab sib dhos hauv lub Hoobkas rau 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series ua ke. Cia lub roj teeb pob, Scooter Electric tsheb roj teeb, thiab lwm yam. Piv nrog rau phau ntawv chaw vuam, qhov ua tau zoo thiab qhov tseeb ntawm vuam tau zoo heev. Kev khiav hauj lwm thiab debugging yooj yim heev thiab yooj yim. Kev tsim ntawm cov khoom siv built-in ua kom pom tseeb dua.

Y-axis stroke: 500mm (customizable)
X-axis stroke: 350mm (customizable)
Spot vuam ceev: 0.35s/ point; 1 teev: txog 5,500 18650 hlwb.
Qhov siab tshaj plaws ntawm lub cev muaj zog tsav: 1000mm / s
(paub) lub peev xwm siab tshaj plaws: 160pcs (tus qauv 18650 lithium roj teeb)
Tus naj npawb ntawm cov ntaub ntawv kaw tseg: 100
Kev khiav hauj lwm qhov system: embedded system ntxiv rau txiv neej - tshuab tshuaj ntsuam
Kev sib kis hom: kauj ruam ntxiv txoj siv sia ntxiv rau kev xa tawm cov ntawv qhia kev tsheb ciav hlau (yeem xaiv servo ntxiv rau cov ntsia hlau

Specification

Max load hluav taws xob cores	X kev taw qhia: 26; Y coj: 18
Muaj peev xwm ua ntaub ntawv pab pawg cia	100 pawg

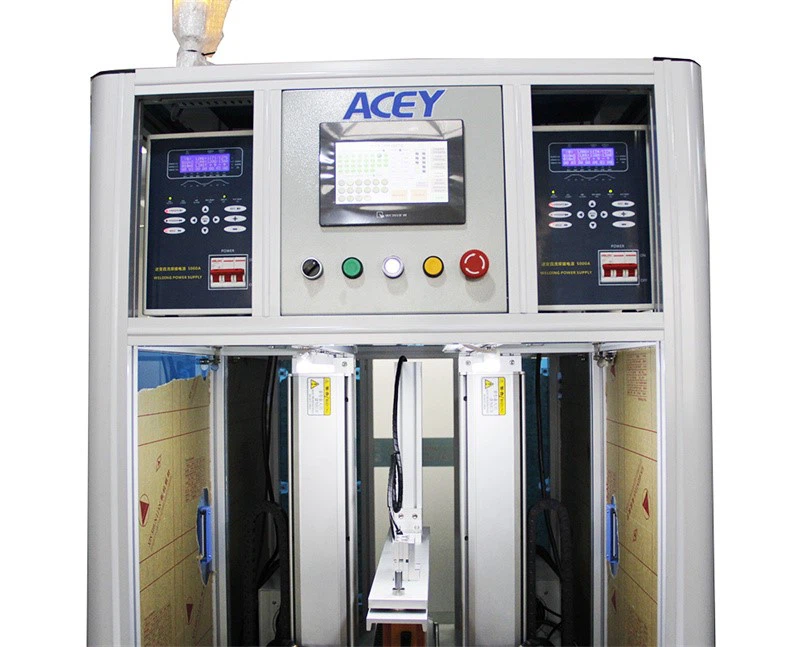

Kev khiav haujlwm	embedded system human-tshuab interface
Hom kis tau tus mob	Taiwan precision ntsia hlau nrog cov lus qhia rail
Tsav tsheb hom	stepper servo lub cev muaj zog
Rov ua dua qhov tseeb	± 0.02mm
Qhov ntev	L1020mm * W910mm * H1770mm
Hwj chim	4000W
Tshuab hnyav	350 KG
Max bearing hnyav ntawm Y-axis	50 KG
Input fais fab mov	Ib-theem AC 380V / 50Hz
Cua Source	0 4-0.6 Mpa
